Alongside our single-frame and two-frame models, the Four Frame Observation Hive provides more comb space and a broader view of colony life while remaining practical to install and transport. Handcrafted from high-quality ash wood, it is designed for beekeepers, educators, exhibitors, and visitor spaces.
A four-frame hive for a small nucleus colony
The hive holds four frames inside a wooden cabinet with clear viewing sides. The frames are arranged two by two, in two rows and two columns. Together, they provide space for a small nucleus colony, with room for brood, food stores, and normal colony activity.
This arrangement allows visitors to observe brood development, food storage, worker movement, and communication across a wider area of comb than the more compact single-frame and two-frame models.
Ash wood construction and removable covers
The cabinet is made from carefully selected ash boards, giving the hive a strong construction and a warm, natural appearance. Both viewing sides are protected by veneered cover panels that slide in and out from the top.
The covers are removed for observation and returned afterward. With both covers in place, the interior remains dark, recreating the naturally dark conditions bees prefer inside the hive. This system allows the colony to be viewed without opening the hive, then returned to darkness with minimal disturbance.

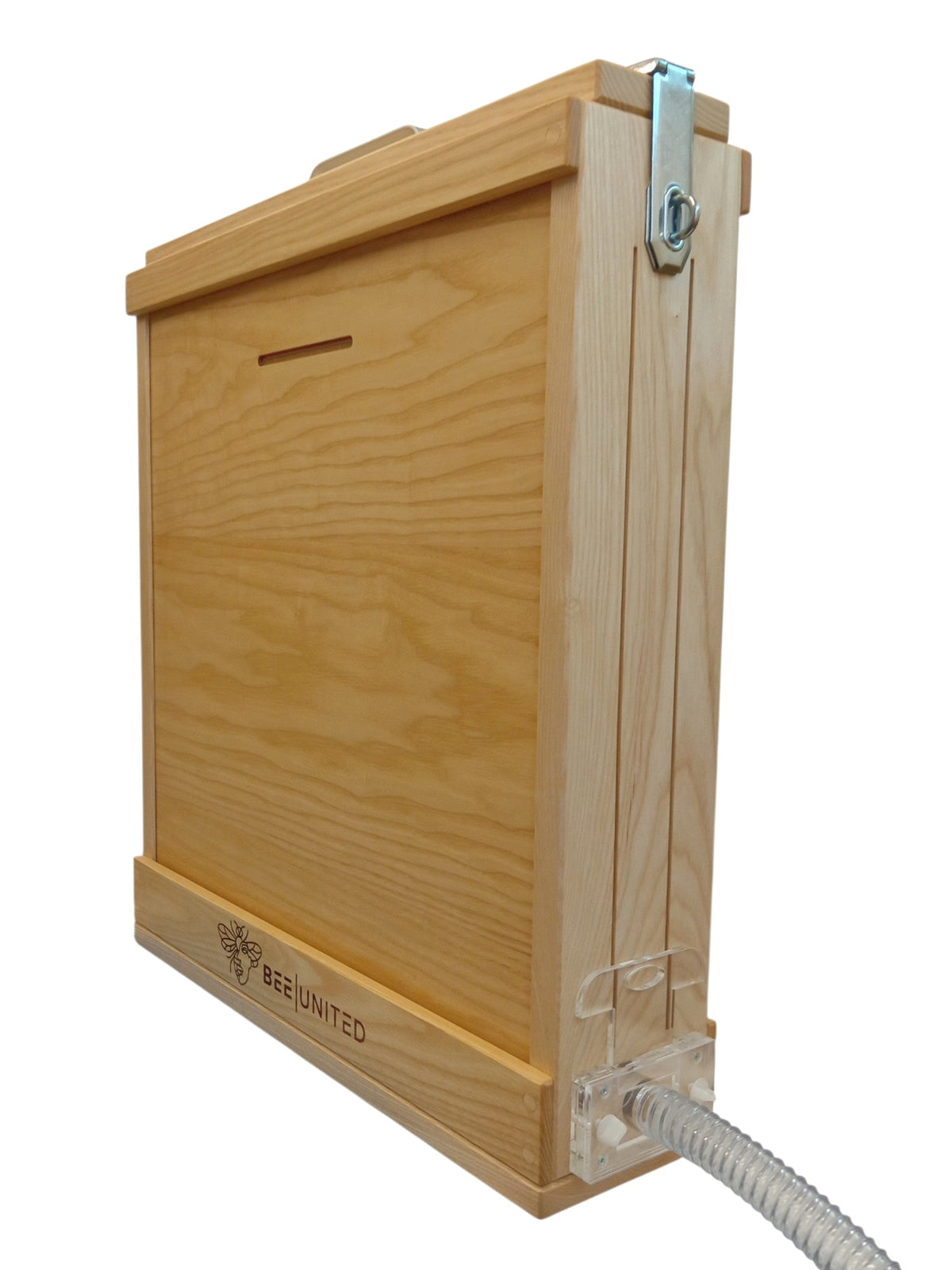

Wall or window installation with a removable entrance tube
The optional entrance system allows the hive to be installed inside and connected to the outdoors through a wall or window. A transparent tube gives the bees access to the outdoor entrance while keeping their passage visible. The tube has an internal diameter of 25 mm, approximately 0.98 inches.
The tube is secured with two wing screws. To move the hive, loosen the screws, remove the tube, and close the plexiglass sliding entrance to keep the bees inside.
This means the hive can stay connected to the outdoors for everyday observation yet be taken to an exhibition, market, or beekeeping event without dismantling it.
Ventilation on both sides
Ventilation is provided by 3 mm, approximately 0.12 inch, slots running along both sides of the hive. These narrow openings support airflow while the colony remains securely enclosed.
Feeding without opening the hive
The hive lid has a capped opening with small holes for pouring syrup directly into the 200 ml feeder, approximately 6.8 US fl oz, which rests on the frames. This lets you feed the bees without opening the hive or disturbing the colony.
Made for education and public demonstrations
The four-frame viewing area helps turn colony activity into something visitors can see and understand. They can observe bees caring for brood, storing food, moving across the comb, and interacting inside the colony.
The hive is well suited to schools, museums, nature centers, honey shops, visitor centers, exhibition stands, beekeeping events, and other supervised indoor displays.
Safe installation and transport
Because the hive houses a live colony, installation and ongoing colony care should be handled by an experienced beekeeper. The entrance should be closed only when the hive is being prepared for controlled transport. Before moving it, confirm that all bees are inside, the plexiglass entrance closure is fully engaged, the viewing panels and the latch are secure, and ventilation is appropriate for the journey.
The route and dimensions of the entrance tube should also be planned before creating an opening through a wall or window.
Choosing the right observation hive
A single-frame or two-frame observation hive can be the right choice when compact size is the main priority. The four-frame model is intended for those who want the capacity of a small nucleus colony, more viewing space, and the flexibility to use the same hive as both a permanent installation and a portable educational display.
Its thoughtful design balances clear observation, practical colony care, and easier transport in one handcrafted hive.
